Specifications:

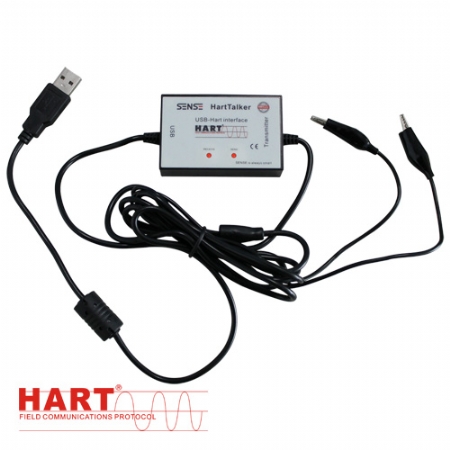

•  SE USB-HARTTalker_PC is designed for HART transmitter developers and users.
•  It is fully compliant any HART instrument with a PC.
•  Galvanic isolation

Performance
•  Economical and easy-to-use
•  Galvanic isolation
•  Transmit/Receive LED indicators
•  No external supply required

Application
•  Any HART instrument PC

Technical data
•  Power supply: no external supply required
•  Galvanic isolation: 1500VDC isolation between instrument and computer
•  Humidity: 0-95% (no-condensing)
•  Pins to HART device: 2-banana plug, polarity insensitive test clips
•  Enclosure: 70 mm×45 mm×18 mm
•  Operating temperature: 0 to 50 ℃
•  Storage temperature: -40 to 80 ℃
•  Operating system: Windows 95/98/ME/2000/XP
